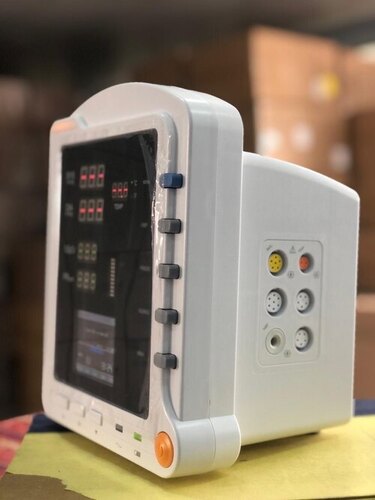

Medical monitoring equipments

12 inch Six Standard parameters

·         ECG,RESP,NIBP,SPO2,TEMP,PR/HR

·         12.1″ high resolution color TFT LCD display

·         UP to 4 hours working capacity of built-in rechargeable battery

·         Anti-ESU, anti- defibrillator

·         Large volume of tabular and graphic trends information storage and easy to recall

·         Arrhythmic Analysis, Multi Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable

·         Options of printing, IBP, VGA and EtCO2

·         9 waveforms display

·         suitable for adult, pediatric and neonatal patient

·         Optional : EtCO2, IBP, Printer, CMS and VGA

Technical specification

ECG

Lead Mode: 5 Leads or 3 leads

Lead selection: I, II, III, avR, avL, avF, V,

Gain: ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV, auto

HR and Alarm

Range

·         Adult: 15 ~ 300 bpm

·         Neo/Ped: 15 ~ 350 bpm

Accuracy: ± 1% or ± 1bpm,which great

Resolution: 1 bpm

Diagnostic: 0.05 ~ 100 Hz

Calibration Signal: 1 (mV p-p), Accuracy:±5%

ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV

Respiration

Method: Impedance between R-F(RA-LL)

Bandwidth: 0.3 ~ 2.5 Hz

Resolution: 1 rpm

Accuracy: ±2 rpm

Apean Alarm: 10 ~ 40 S

NIBP

Method: Oscillometric

Mode: Manual, Auto, STAT

Pulse Rate Range: 40 ~ 240 bpm

Alarm Type: SYS, DIA, MEAN

Resolution Pressure: 1mmHg

Accuracy Pressure Maximum Mean error: ±5mmHg

Maximum Standard deviation: ±8mmHg

Overpressure Protection

SpO2

Measuring Range: 0 ~ 100 %

Alarm Range: 0 ~ 100 %

Resolution: 1 %

Accuracy

·         70% ~ 100% ±2 %

·         0% ~ 69% unspecified

Actualization interval: about 1 Sec.

Alarm Delay: 10 Sec.

Pulse Rate

Measuring and Alarm Range: 20~300bpm

Resolution: 1bpm

Accuracy: ±2bpm

Temperature

Channel: 2

Measuring and Alarm Range: 0 ~ 50 °C

Resolution: 0.1°C

Accuracy: ±0.1°C
